Overview:

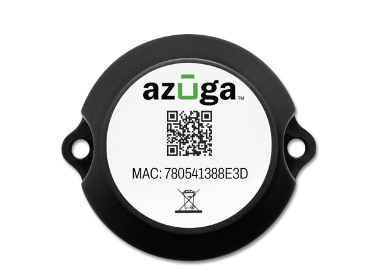

The Azuga Equipment Beacon is an inexpensive yet powerful solution for tracking equipment, tools, and
other small assets. Designed for seamless integration with your fleet management system, the Equipment
Beacon emits a Bluetooth signal that is detected by your Azuga GV620MG asset trackers.
Utilizing the asset tracker’s cellular data connection, the equipment beacon’s location is transmitted back
to the Azuga Fleet server in real-time, ensuring you always know where your assets are, enhancing
operational efficiency and asset security.
Technical Specifications:
Shell material | ABS plastic |
Shell color | Black |
Dimensions | Φ46 mm*40 mm*18 mm |
Weight | 24 g ± 1 g |
Beacon warranty | 1 year |
Battery type | 1 x CR2477 |
BLE Advertising Frequency | 2 s |
Battery life | Up to 2-3+ years |
Operating Current (Default setting) | 21 µA |
Standby Current | < 5 µA |
Operating temperature | -20°C~+60°C |
BLE | BLE 5.1 |
Waterproof | IP67 |
Transmission Range | 40 to 60 ft, depending on conditions, with maximum |
Installation | Mounted with 3M tape or screws (optional) |
