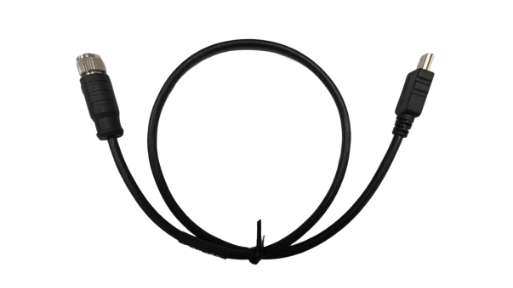

Square Auxiliary Camera Extendable Connector Cable
Category | Specification |
Main Camera Supported | SafetyCam Plus |
Product Code | AUXPLUS-SQUARE-EXTENDABLE |
Number of Aux Camera Supported | 1 wired Square Aux Camera |
Installation Position | Exterior |

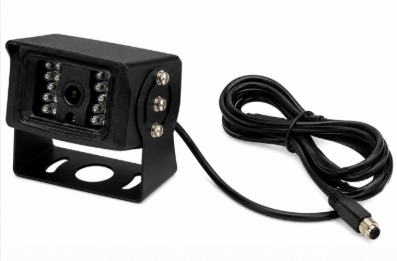

Type | Wired Exterior Auxiliary Camera |
Cable length | Pre-fitted 16.4-feet (5-meter) |
Extendable Cable | Available, to be bought separately |
Extendable Cable Length | Extendable up to 30 meters (98.4 feet) |
Field of Vision | 120° wide viewing angles |
Lens | 2.8 mm |
Input Power | 5V/0.5A |
Night Vision Supported | Yes - Automatic exposure, white balance, automatic Day and Night mode switch |
Night Vision Range | Up to 10 m IR LED Distance |
IP Rating | IP69K |
Video Format | H.264 / YUV2 |
Image Sensor | OV2735, 1/2.7" CMOS |
Resolution | 720p @ 30fps |
Minimum Illumination | 0.1 Lux |
Environment | Operating Temperature: -10°C to +70°C (+14°F to +158°F) |
Weight | ~ 460 grams |
Dimension (with mount) | 48.7 x 75.1 x 67.4 mm |
Connector Options (available in the box) | Mini USB to MB |
