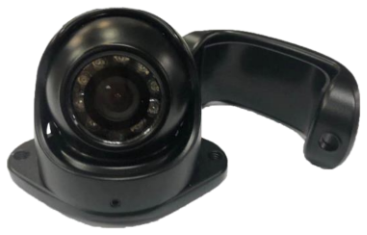

DOME Camera
Category | Specification |
Main Camera Supported | SafetyCam Pro |
Number of Aux Camera Supported | Upto 4 wired Aux Camera |
Installation Position | Exterior side or rear of the vehicle |
Type | Wired Exterior Auxiliary Camera |
Extension Distance | Up to 40 meters (131 feet) (Extension cables to be purchased separately) |
Compatibility | Must be used with Aux Connector |
IP Rating | Waterproof and dust resistance grade: IP69K |
Day Night Mode | Automatic switch day and night mode. Day-night switch |
Low Lighting Condition | Infrared LEDs for clear images in low-light conditions |
Shock Rating | ≥10G (Die Cast Aluminum Housing) |
Field of Vision (D/H/V) | D:124°, H: 95°, V: 69° |
Environment | Operating Temperature:
|
Storage Temperature:
| |
Power Range | DC12V to 24V ±10% wide voltage |
Weight | 266g |
Dimension | 62 x 87 x 62.9mm |
SQUARE Camera
Category | Description |
Main Camera Supported | SafetyCam Pro |
Number of Aux Camera Supported | Upto 4 wired Aux Camera |
Installation Position | Exterior side or rear of the vehicle |
Type | Wired Exterior Auxiliary Camera |
Extension Distance | Up to 40 meters (131 feet) (Extension cables to be purchased separately) |
Compatibility | Must be used with Aux Connector |
IP Rating | Waterproof and dust Resistance grade: IP69K |
Day Night Mode | Automatic day/night sensor |
Low Lighting Condition | Infrared LEDs for clear images in low-light conditions |
Field of Vision (D/H/V) | D: 140°, H: 110°, V: 92° |
Power Supply | DC12V/24V ±10% (wide voltage with power supply tube) |
Environnent | Operating Temperature
|
Storage Temperature:
| |
Weight | 259g |
Dimension | 76(L) × 65(W) × 73(H)mm |
