Category | Specifications |
Main Camera Supported | SafetyCam Pro |
Number of Aux Cameras Supported | Up to 4 wired auxiliary cameras |
Installation Position | Exterior side or rear of the vehicle |

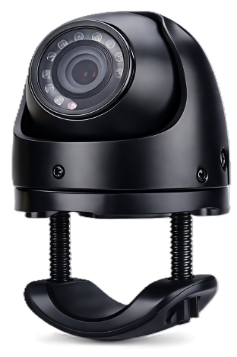

Camera Type | Wired Exterior Dome Auxiliary Camera |
Extension Distance | Up to 40 meters (131 feet) (Extension cables are sold separately) |
Cable Length | 1 meter |
Compatibility Requirement | Must be used with Aux Connector |
IP Rating | IP69K (waterproof and dust resistant grade) |
Field of Vision (D/H/V) | D: 124°, H: 95°, V: 69° |
Low Light Performance | 0.01 Lux (ultra-low illumination) |
Night Vision | 9x IR LEDs |
Day/Night Mode | Automatic day and night mode switching |
Image Adjustments | Automatic exposure, white balance |
Low Lighting Condition | Infrared LEDs for clear images in low-light conditions |
Shock Rating | ≥10G (Die-cast aluminum housing) |
Resolution | 720p @ 30 fps |
Video Format | TVI |
Image Sensor | Sony 1/3 inch |
Lens | 3.0 mm |
Environment | Operating Temperature
|
Storage Temperature
| |
Power Range | DC 12V to 24V ±10% wide voltage |
Dimensions | 62 x 87 x 62.9 mm (without mounting clamp) |
Weight | 266 g |
